Size Chart Plastic Protection for Type L and M Tubing
LMP Size Chart
Table View
List View
Part #
Description
To Fit Tube Size
Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Tab Width
in
mm
Box/Mini/Micro QTY
Buy Online More info
LMP0375
Tapered Plugs for Type L and M Tubing - TAPERED PLUG FOR 3/8 TYPE L AND M TUBING
3/8
0.320
8.1
0.330
8.4
0.380
9.7
0.375
9.5
0.217
5.5
75001500150
LMP0500
Type L and Type M Tubing Plastic Tapered Plugs - TAPERED PLUG FOR 1/2 TYPE L AND M TUBING
1/2
0.420
10.7
0.440
11.2
0.380
9.7
0.500
12.7
0.258
6.6
75001500150
LMP0625
Plastic Plugs Caps - Type L and M Tubing - TAPERED PLUG FOR 5/8 TYPE L AND M TUBING
5/8
0.540
13.7
0.560
14.2
0.500
12.7
0.625
15.9
0.378
9.6
90001800180
LMP0750
Polyethylene Plastic Cork for Type L and M Tubing - TAPERED PLUG FOR 3/4 TYPE L AND M TUBING
3/4
0.660
16.8
0.690
17.5
0.620
15.7
0.750
19.1
0.489
12.4
50001000100
LMP0875
Type L Tubing Plugs and Type M Tubing Plugs - TAPERED PLUG FOR 7/8 TYPE L AND M TUBING
7/8
0.780
19.8
0.810
20.6
0.750
19.1
0.875
22.2
0.495
12.6
300060060
LMP1125
Tapered Plug For Type L Copper Tube - TAPERED PLUG FOR 1-1/8 TYPE L AND M TUBING
1-1/8
1.020
25.9
1.050
26.7
0.880
22.4
1.125
28.6
0.760
19.3
150030030
LMP1375
Tapered Fittings for Type L or M Tubing - TAPERED PLUG FOR 1-3/8 TYPE L AND M TUBING
1-3/8
1.260
32.0
1.300
33.0
1.000
25.4
1.375
34.9
1.000
25.4
100020020
LMP1625
Plastic Protection for Type L and M Tubing - TAPERED PLUG FOR 1-5/8 TYPE L AND M TUBING
1-5/8
1.500
38.1
1.540
39.1
1.000
25.4
1.625
41.3
1.000
25.4
70014014
LMP2125
Tapered Type L and M Plug - TAPERED PLUG FOR 2-1/8 TYPE L AND M TUBING
2-1/8
1.970
50.0
2.020
51.3
1.000
25.4
2.125
54.0
1.475
37.5
50010010
LMP2625
Tapered Plugs for Type L and M Tubing - TAPERED PLUG FOR 2-5/8 TYPE L AND M TUBING
2-5/8
2.450
62.2
2.500
63.5
1.000
25.4
2.625
66.7
1.475
37.5
250505
LMP3125
Type L and Type M Tubing Plastic Tapered Plugs - TAPERED PLUG FOR 3-1/8 TYPE L AND M TUBING
3-1/8
2.930
74.4
2.990
75.9
1.000
25.4
3.125
79.4
1.475
37.5
200404
LMP3625
Plastic Plugs Caps - Type L and M Tubing - TAPERED PLUG FOR 3-5/8 TYPE L AND M TUBING
3-5/8
3.410
86.6
3.450
87.6
1.000
25.4
3.625
92.1
1.985
50.4
100202
LMP4125
Polyethylene Plastic Cork for Type L and M Tubing - TAPERED PLUG FOR 4-1/8 TYPE L AND M TUBING
4-1/8
3.890
98.8
3.930
99.8
1.000
25.4
4.125
104.8
1.985
50.4
250505
Part #
Description
To Fit Tube Size
Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Tab Width
in
mm
Box/Mini/Micro QTY
Buy Online More info
Legend:
- Add to Cart - View Price
Micropacks are only available for purchase through our online store.
Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive
Application Advisor for Assistance.
Tapered Plugs for Type L and M Tubing - Information

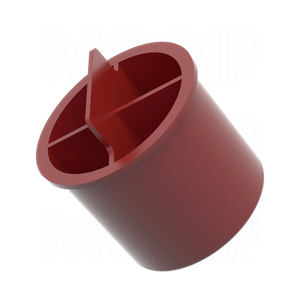

MOCAP Tapered Plugs For Type L and M Tubing are designed for to plug and protect Type L & Type M copper tubing. The reinforced cross bracing provides for a secure fit and a slight pull-tab allows a grip for easier removal.
Protects tubing from dust and damage during production, shipping and storage.
Our LMP Series Plugs are molded in Redpolyethylene plastic and sized to fit Type L and M Tubing from 3/8 OD thru 4 1/8 OD.
MOCAP stocks Tapered Plugs for Type L and M Tubing in many sizes for immediate shipment.
MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
