Threaded Plastic Plugs for Flat-Faced O-Ring Fittings

 800.633.6775


Threaded Plastic Plugs for Flat-Faced O-Ring Fittings

FOP


Polypropylene Flat-Faced O-Ring Plugs
Threaded Plastic Plugs for Flat-Faced O-Ring Fittings

FOP–Media

Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Male Flat-Faced ORing Plugs Plastic Plug for Flat-Faced O-Ring Hydraulic Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Plastic O-Ring Fittings Polypropylene Flat-Faced O-Ring Plugs Flat-Faced O-Ring Plug Caps (Polyethylene Plastic) Plastic Bolt for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Knurled Grip for Easy Application and Provide a Better-than-Normal Seal with Only Hand-Tightening

Size Chart Plastic Plug for Flat-Faced O-Ring Hydraulic Fittings

FOP Size Chart

Table View
List View
Part # Description Tube Size
in
mm
To Fit STD Thread Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
FOP200 Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - PLUG FOR 11/16-16 FLAT FACE O-RING FTNG OR 3/8 TUBE
0.375
9.5
11/16 - 16
0.440
11.2
0.870
22.1
5000 1000 100
FOP210 Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - PLUG FOR 13/16-16 FLAT FACE O-RING FTNG OR 1/2 TUBE
0.500
12.7
13/16 - 16
0.500
12.7
0.940
23.9
2500 500 50
FOP220 Plastic Bolt for Flat-Faced O-Ring Fittings - PLUG FOR 1-14 FLAT FACE O-RING FTNG OR 5/8 TUBE
0.625
15.9
1 - 14
0.590
15.0
1.160
29.5
2500 500 50
FOP230 Flat-Faced O-Ring Plug Caps (Polyethylene Plastic) - PLUG FOR 1-3/16-12 FLAT FACE O-RING FTNG OR 3/4 TUBE
0.750
19.1
1-3/16 - 12
0.630
16.0
1.330
33.8
2500 500 50
FOP240 Polypropylene Flat-Faced O-Ring Plugs - PLUG FOR 1-7/16-12 FLAT FACE O-RING FTNG OR 1 TUBE
1.000
25.4
1-7/16 - 12
0.750
19.1
1.630
41.4
1000 200 20
Part # Description Tube Size
in
mm
To Fit STD Thread Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.



Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - Information

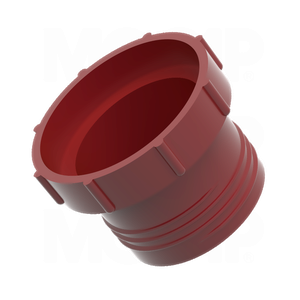

MOCAP Threaded Plastic Plugs are designed for use on Flat Faced O-Ring fittings. These Threaded Plastic Plugs are knurled for easy use in manual assembly.
Our FOP Series plugs protect threaded pipe fittings from moisture, dust and damage during production, shipping and storage. They are molded in Red polyethylene plastic and sized to fit Flat Faced O-Ring Fittings from 11/16-16 thru 1-7/16-12 or tubes from 3/8 thru 1.

MOCAP stocks Threaded Plastic Plugs for Flat-Faced O-Ring Fittings in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
MOCAP - Threaded Plastic Plugs for Flat-Faced O-Ring Fittings
