Flanged Plastic Caps for Standard Straight Threads

 800.633.6775


Flanged Plastic Caps for Standard Straight Threads

FCS


Polyethylene Plastic Caps for Standard Threads
Flanged Plastic Caps for Standard Straight Threads

FCS–Media

Flanged Caps for Straight Threads Thread and Flange Protection Plastic Thread Protector Caps Flanged Plastic Fittings Connector Cap Polyethylene Plastic Caps for Standard Threads Plastic Caps for Standard Straight Threads Standard Straight Threads - Flanged Caps Metric Threads - Flared Plastic Caps Flanged Plastic Caps for Standard Straight Threads
  • Material: LDPE (Low Density Polyethylene) (Natural)
  • Flanged for Easy Removal
  • Use as Thread Protector or End Cap

Available in the following varieties:

FCS - Flanged Caps for Straight Threads Flanged Plastic Caps for Standard Straight Threads
FCSL - Long Flanged Caps for Straight Threads Long Flanged Caps for Straight Threads
FCM - Flanged Caps for Metric Threads Flanged Plastic Caps for Metric Threads
FCBN - Flanged Caps for BSP and NPT Threads Flanged Plastic Caps for BSP and NPT Threads

Size Chart Plastic Thread Protector Caps

FCS Size Chart

Table View
List View
Part # Description To Fit STD Thread Inside Diameter
in
mm
 Flange OD
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
FCS.313L Flanged Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 5/16" STR THRDS 0.840" LONG LDPE 5/16
0.310
7.9
0.510
13.0
0.840
21.3
 10000 2000 200
FCS.375 Metric Threads - Flared Plastic Caps - FLANGE CAP FOR 3/8" STR THRDS 0.470" LONG LDPE 3/8
0.370
9.4
0.600
15.2
0.470
11.9
 5000 1000 100
FCS.375L Standard Straight Threads - Flanged Caps - FLANGE CAP FOR 3/8" STR THRDS 0.840" LONG LDPE 3/8
0.370
9.4
0.600
15.2
0.840
21.3
 7500 1500 150
FCS.437 Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 7/16" STR THRDS 0.470" LONG LDPE 7/16
0.428
10.9
0.690
17.5
0.470
11.9
 5000 1000 100
FCS.500 Polyethylene Plastic Caps for Standard Threads - FLANGE CAP FOR 1/2" STR THRDS 0.470" LONG LDPE 1/2
0.490
12.4
0.750
19.1
0.470
11.9
 5000 1000 100
FCS.563 Connector Cap - FLANGE CAP FOR 9/16" STR THRDS 0.500" LONG LDPE 9/16
0.550
14.0
0.810
20.6
0.500
12.7
 5000 1000 100
FCS.625L Flanged Plastic Fittings - FLANGE CAP FOR 5/8" STR THRDS 0.840" LONG LDPE 5/8
0.610
15.5
0.760
19.3
0.840
21.3
 5000 1000 100
FCS.687 Plastic Thread Protector Caps - FLANGE CAP FOR 11/16" STR THRDS 0.500" LONG LDPE 11/16
0.676
17.2
0.940
23.9
0.500
12.7
 5000 1000 100
FCS.687L Thread and Flange Protection - FLANGE CAP FOR 11/16" STR THRDS 0.840" LONG LDPE 11/16
0.676
17.2
0.940
23.9
0.840
21.3
 5000 1000 100
FCS.750L Flanged Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 3/4" STR THRDS 0.880" LONG LDPE 3/4
0.738
18.7
0.900
22.9
0.880
22.4
 5000 1000 100
FCS.750 Metric Threads - Flared Plastic Caps - FLANGE CAP FOR 3/4" STR THRDS 0.670" LONG LDPE 3/4
0.738
18.7
1.000
25.4
0.670
17.0
 5000 1000 100
FCS.813 Standard Straight Threads - Flanged Caps - FLANGE CAP FOR 13/16" STR THRDS 0.560" LONG LDPE 13/16
0.802
20.4
1.060
26.9
0.560
14.2
 5000 1000 100
FCS.875 Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 7/8" STR THRDS 0.660" LONG LDPE 7/8
0.864
21.9
1.120
28.4
0.660
16.8
 4300 860 86
FCS1.000 Polyethylene Plastic Caps for Standard Threads - FLANGE CAP FOR 1" STR THRDS 0.660" LONG LDPE 1
0.990
25.1
1.250
31.8
0.660
16.8
 3000 600 60
FCS1.062 Connector Cap - FLANGE CAP FOR 1-1/16" STR THRDS 0.750" LONG LDPE 1-1/16
1.051
26.7
1.310
33.3
0.750
19.1
 2400 480 48
FCS1.187 Flanged Plastic Fittings - FLANGE CAP FOR 1-3/16" STR THRDS 0.750" LONG LDPE 1-3/16
1.175
29.8
1.440
36.6
0.750
19.1
 2000 400 40
FCS1.313 Plastic Thread Protector Caps - FLANGE CAP FOR 1-5/16" STR THRDS 0.750" LONG LDPE 1-5/16
1.298
33.0
1.560
39.6
0.750
19.1
 1800 360 36
FCS1.437 Thread and Flange Protection - FLANGE CAP FOR 1-7/16" STR THRDS 0.750" LONG LDPE 1-7/16
1.426
36.2
1.690
42.9
0.750
19.1
 1500 300 30
FCS1.563 Flanged Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 1-9/16" STR THRDS 0.750" LONG LDPE 1-9/16
1.548
39.3
1.710
43.4
0.750
19.1
 3000 600 60
FCS1.625 Metric Threads - Flared Plastic Caps - FLANGE CAP FOR 1-5/8" STR THRDS 0.850" LONG LDPE 1-5/8
1.612
40.9
1.880
47.8
0.850
21.6
 1000 200 20
FCS1.687 Standard Straight Threads - Flanged Caps - FLANGE CAP FOR 1-11/16" STR THRDS 0.750" LONG LDPE 1-11/16
1.672
42.5
1.920
48.8
0.750
19.1
 1000 200 20
FCS1.875 Plastic Caps for Standard Straight Threads - FLANGE CAP FOR 1-7/8" STR THRDS 1.080" LONG LDPE 1-7/8
1.860
47.2
2.120
53.8
1.080
27.4
 800 160 16
FCS2.500 Polyethylene Plastic Caps for Standard Threads - FLANGE CAP FOR 2-1/2" STR THRDS 1.300" LONG LDPE 2-1/2
2.485
63.1
2.750
69.9
1.300
33.0
 400 80 8
FCS3.500 Connector Cap - FLANGE CAP FOR 3-1/2" STR THRDS 1.340" LONG LDPE 3-1/2
3.485
88.5
4.090
103.9
1.340
34.0
 250 50 5
Part # Description To Fit STD Thread Inside Diameter
in
mm
 Flange OD
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.



Flanged Plastic Caps for Standard Straight Threads - Information

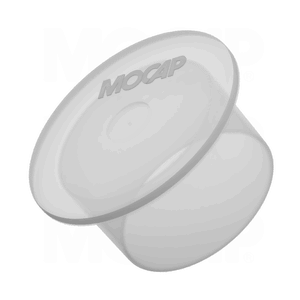

MOCAP FCS Series flanged polyethylene plastic caps are designed to protect standard straight threads. The natural color of the flanged plastic caps allows visual verification of the threads or o-ring. Flanged caps for standard straight threads are easy to assemble or remove by hand or automated equipment.
FCS Series available in sizes to fit 7/16" through 1-5/8" straight threads.

Additional series available to fit Standard Straight Threads and BSP & NPT Threads.

  • Flanged for Easy Removal
  • Use as Thread Protector or End Cap
  • Sizes Also Available For Metric, BSP & NPT Threads and Fittings



MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
